Printing method: Line-type thermal transfer
Point density: 203 dpi (dots per inch)
Printing speed: up to 250mm/s

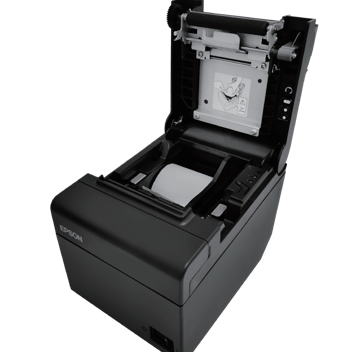

Paper size (mm): 79.5 ± 0.5 mm / 57.5 ± 0.5 mm
Font: 12×24 (Font A), 9×17 (Font B), 24×24 (Chinese characters)
Number of columns: (80mm paper width) 48 (Font A), 64 (Font B), 24 (Kanji font) (Chinese characters)
English number character: 95
Barcode:UPC-A、UPC-E、JAN8/EAN8、JAN13/EAN13、Code39、Code93、Code128、ITF、CODABAR(NW-7)、GS1-QR code:128、GS1 DataBar Omnidirectional、GS1 DataBar Truncated、GS1 DataBar Limited、GS1 DataBar Expanded
PDF417, QR code, Maxi Code, Twodimensional GS1 DataBar, Composite Symbology
Paper level sensor: Installed
Average Fault-Free Operation Time: 360,000 hours
Average downtime-free period: 60 million lines
Print head lifespan: 150 km
Blade life: 1.5 million times
D.K.D Function: Dual Drive
Power Supply: AC Adapter C1

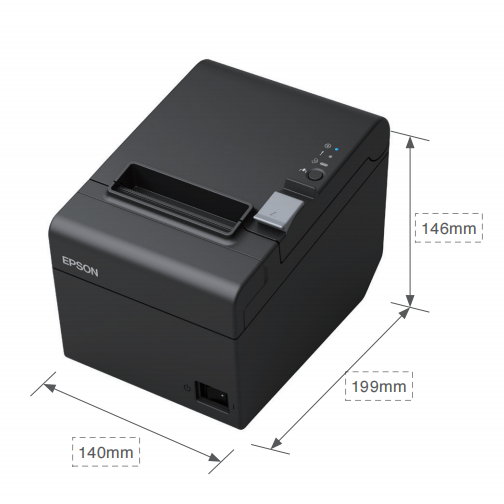

Overall dimensions (mm): 140 (width) × 199 (depth) × 146 (height)
Weight (approximate weight): 1.7kg
Color: Black

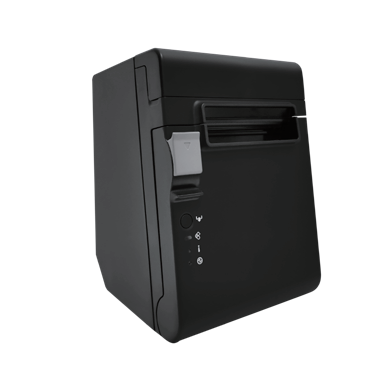

Installation: Vertical, Horizontal, Wall-mounted
Data reception buffer: 4 KB or 45 bytes
Print Driver: APD6 UPOS ePOS SDK (iOS/Android)
Temperature: Operation range: 5 - 45 ° Storage;-10 to 50 °C (excluding paper)
Operation: 10 - 90% humidity; Storage: 10 - 90% (excluding paper)
Safety standard: CCC
Standard accessories: Paper roll x1, User manual, AC adapter, AC power cord, Wall mounting bracket, 58mm paper width baffle, Power switch cover, Waterproof power switch cover, Rubber foot pads, Control panel label for vertical installation
Option: External buzzer OT-BZ20
Note:
1.Built-in USB + RS-232 Serial Port + Bidirectional Parallel Port, Ethernet Port Supported.
Wireless & Bluetooth printing is available, but Bluetooth/WiFi module is NOT included, extra purchase required.
2.The configurations and specifications listed on this page are subject to the actual products available in the market, and any changes will be made without prior notice.
