Printer specifications1.Printing method: Thermal sensitive type
2.Printing instruction:
AUTO、TSPL、ESC/POS、CPCL3.Print resolution:
203DPI4.Printing speed: Paper speed: 120mm/s (maximum)/Label: 70mm/s (maximum)
5.Print width: 72mm
6.Print head temperature detection:Thermistor
7.Print head position detection: Microswitch
8.Paper detection sensor: Line-of-sight sensor, reflective sensor
9.Sensor position: On the left.
10.Memory: RAM 8M Flash: 16M

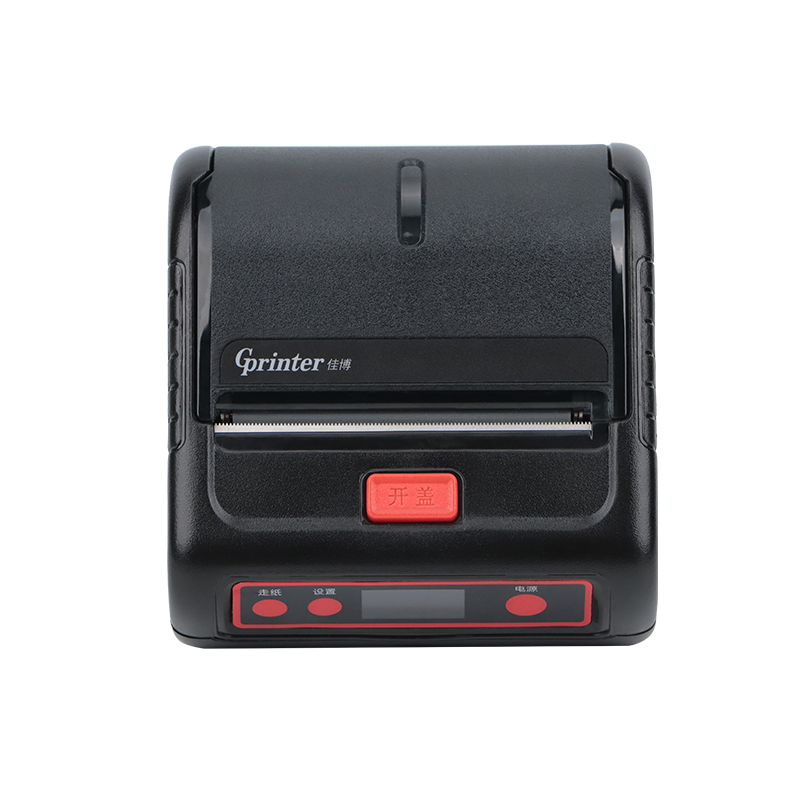

11.Display screen: 128*64
12.Press keys: Power/Save, Paper Feed/Settings, Menu
13.Communication interface: USB + Bluetooth (1 BLE + 4 SPP)
14.USB port specification: Type-C
15.USB VID PID VID:0471 PID:0055
16.Maximum printing size: 72mm × 300mm
Barcode character graphics
1.Graphic: Monochrome PCX, BMP and other image files for printing
2.Barcode: CODE128, EAN128, ITF, Cross 25 Code, CODE39, CODE39C, CODE39S, CODE93, EAN1 Code 39, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, MSI, MSIC, PLESEY, ITF14, EAN14
3.QR code: QRCODE、PDF417、Datamatrix
4.Character set：
Common single-byte fonts: FONT 0 to FONT 8/Final English translation: 16*16, 20*20/Traditional Chinese (BIG5): 24*24/Korean (KSC5601): 24×24/Source Sans Bold (vector font)
5.Character enlargement/rotation
TSPL: Can be magnified by 2 to 30 times both horizontally and vertically.
CPCL: According to the CPCL standard, it can be enlarged horizontally and vertically. Dimensions are 96*96 (maximum).
Rotating printing (0°, 90°, 180°, 270°)
Material specification

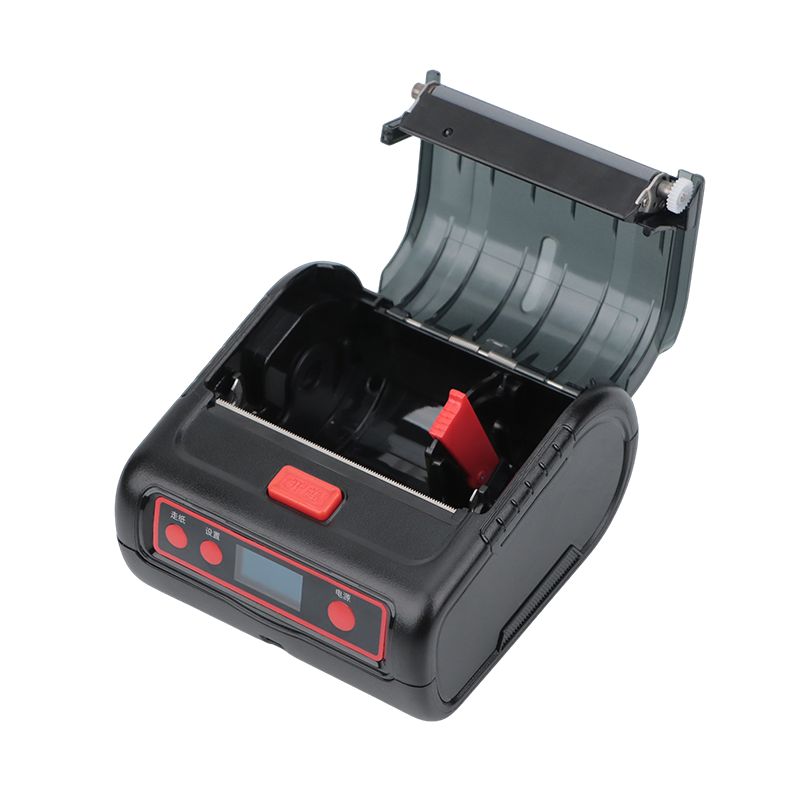

1.Paper types: Continuous paper, label paper, front black label paper
2.Medium width: 25 - 80 mm
3.Paper thickness: 0.06mm - 0.17mm
4.Outer diameter of the paper roll: 51mm
5.Paper output method: Top paper output
Power supply

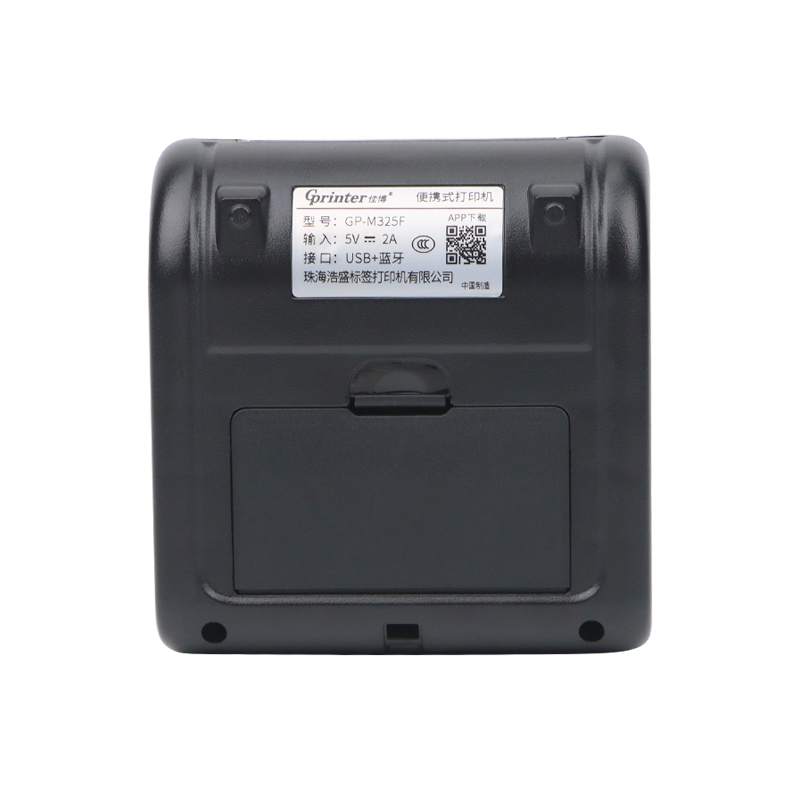

1.Input: DC 5V 2A
2.Charging time is less than 4 hours.
Battery
1.Battery standby time: More than 96 hours
2.Battery printing distance ≥ 200 meters (printing rate of 12.5%)
3.Battery cycle life: 500 times, ≥ 80%
4.Battery capacity: 7.4V / 2600mAh
Physical parameters1.Working environment: -10 to 50℃, 20 to 90% without condensation
2.Storage environment: -20 to 60℃, 20 to 93% without condensation
3.Air pressure: 86 - 106 kPa
4.Weight (excluding battery) approximately 300g
5.Weight (including battery) approximately 400g
6.Packaging weight (per unit)Approximately 550 grams
7.Overall dimensions: 88mm x 126mm x 63mm
8.Overall dimensions: 88mm x 126mm x 63mm
Reliability
1.Thermal sensitive film (wear resistance) :30 km
Certification
Product certifications :CCC, SRRC, CE, FCC, UN38.3, and IP54.
Note：
The configurations and specifications listed on this page are subject to the actual products available in the market, and any changes will be made without prior notice.
