Printing method: Line-type thermal transfer
Point density: 203 dpi x 203 dpi
Printing speed: Maximum 200mm/s
Paper size (mm): 79.5 + 0.5 (width) x dia. 83.0
Font: 12x24 (Font A), 9x17 (Font B), 24×24 (Chinese characters)
Number of columns(80mm paper width)： 48 (Font A), 64 (Font B), 24 (Kanji font) (Chinese characters)
Character size (mm): 1.25x3 mm (Font A), 0.88x2.13 mm (Font B), 3×3 mm (Chinese characters)
English number character: 95
International characters: 18 sets
Barcode:UPC-A、UPC-E、JAN8/EAN 8、JAN13/EAN13、Code39、Code93、Code128、ITF Barcode、CODABAR(NW-7)、GS1-128、GS1 DataBar Omnidirectional、GS1 DataBar Truncated、GS1 DataBar Limited、GS1 DataBar Expanded
QR code:PDF417 OR cnde Maxi Code Twndimensional GS1 DataBar, Composite Symbology
Paper sensor: Installed
Average Fault-Free Operation Time: 360,000 hours
Average downtime-free period: 60 million lines
Blade life: 1.5 million times
D.K.D Function: Dual Drive
Power supply: Built-in (with a random power cord included)
Power supply: AC 100-240V, 50-60Hz
Interface: USB, RS-232, Ethernet port
Overall dimensions(mm): 140(w)x192(D)x141(H)
Weight (approximate weight): 1.5kg
Color: Black
Installation: Horizontal
Receive data buffer: 4 KB or 45 bytes
Print Driver: UDOC ePOS SDK (OS/Android)
Temperature: Operation: 5 - 45℃ Storage;-10 - 50℃ (excluding paper)
Operation: 10 - 90% humidity; Storage: 10 - 90% (excluding paper)
Safety standard: CCC
Standard Accessories: Paper Roll × 1 roll (for testing the printer's initial settings) Standard Accessories User Manual, USB Data Cable (for USB + serial port models, provided separately)

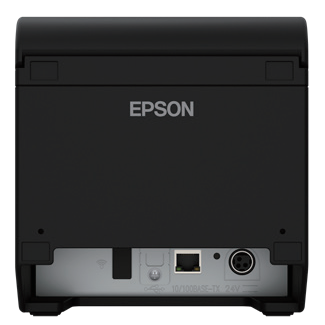

Flexible Interface Configuration
Built-in USB + RS-232 Serial Port + Bidirectional Parallel Port, Ethernet Port Supported.
Note:
1.Wireless & Bluetooth printing is available, but Bluetooth/WiFi module is NOT included, extra purchase required.
2.The configurations and parameters listed on this page are based on the actual products available on the market. Any changes will not be notified separately.
