Printing function
Printing method: Line-type thermal printing
Point density: 180 dpi x180 dpi
Printing speed: Up to 500 millimeters per second
Interface: Network port, USB-A, USB-B, Serial port, Parallel port
Interface data buffer: 4KB
Quick pairing function: Set up from smart devices. Epson TM Utility (iOS/Android) NFC/Quick pairing QR code
Print font
Font:ANK FontA 12 x 24 /ANK FontB 9 x17/ Kanji Font A 24-x 24 /Kanji Font B 16 x 16
Character size (mm):ANK A 1.41 x 3.39mm/ANK B 0.99 x 2.40mm/Kanji Font A 3.39 x 3.39mm/Kanji Font B 2.26 x 2.26mm
Character types: Simplified Chinese, Traditional Chinese, Japanese, Korean, Special characters (supporting UTF-8)
Barcode:UPC-A、UPC-E、JAN8/ EAN8、JAN13/ EAN13、Code39、Code93、Code128、自动Code128、ITF、CODABAR（NW-7）、GS1-128、GS1 DataBar
QR code:PDF417, QR code, Maxi Code, Data Matrix, Aztec, Two- dimensional GS1 DataBar, Composite Symbology
Paper size (mm)
Width: 80 millimeters (79.5 +/- 0.5 millimeters)/ 58 millimeters (57.5 +/- 0.5 millimeters)
Diameter: Maximum 83 millimeters
Thickness: 0.048 millimeters - 0.08 millimeters
Electrical Specifications (mm)
Power supply unit: PS-190
Power supply voltage: DC 24V ± 7%
Operation: 27.9W power consumption; Standby: 1.4W
Safety standards
Safety standard: CCC
Reliability
Printer mechanism lifespan: 20 million lines
Print head lifespan :200 kilometers
Cutting tool lifespan: 3 million times
Average Fault-Free Operation Time: 360,000 hours
Average number of fault-free print runs: 70 million runs
Appearance

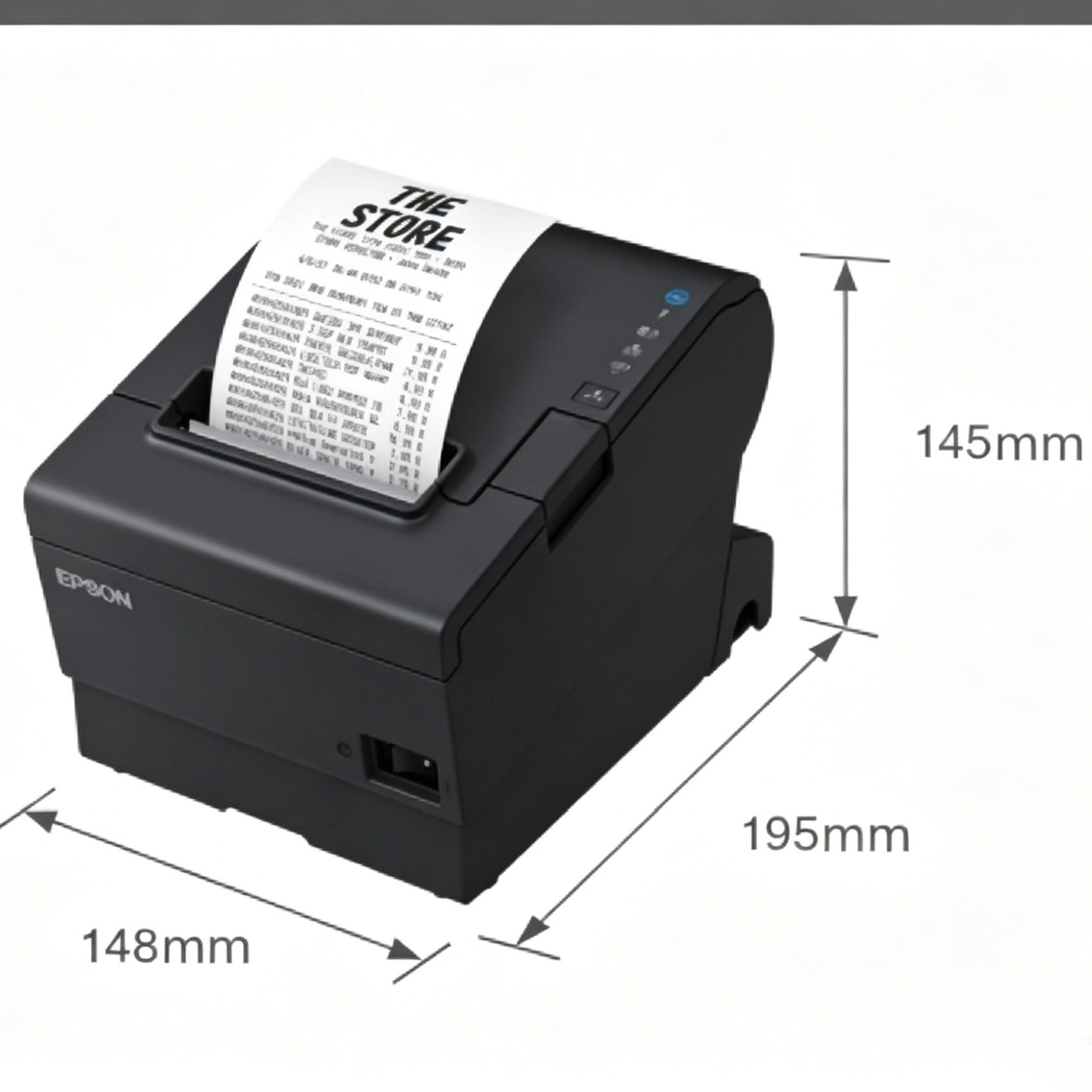

Dimensions (in millimeters): 145mm x 195mm x 148mm
Weight (approximate weight): 1.7kg (excluding the roll of paper)
Operating environment
Temperature: Operation 5 - 45°C / Storage -10 - 50°C (excluding paper)
Humidity: Operation: 10% - 90% RH / Storage: 19% - 90% RH (excluding paper)

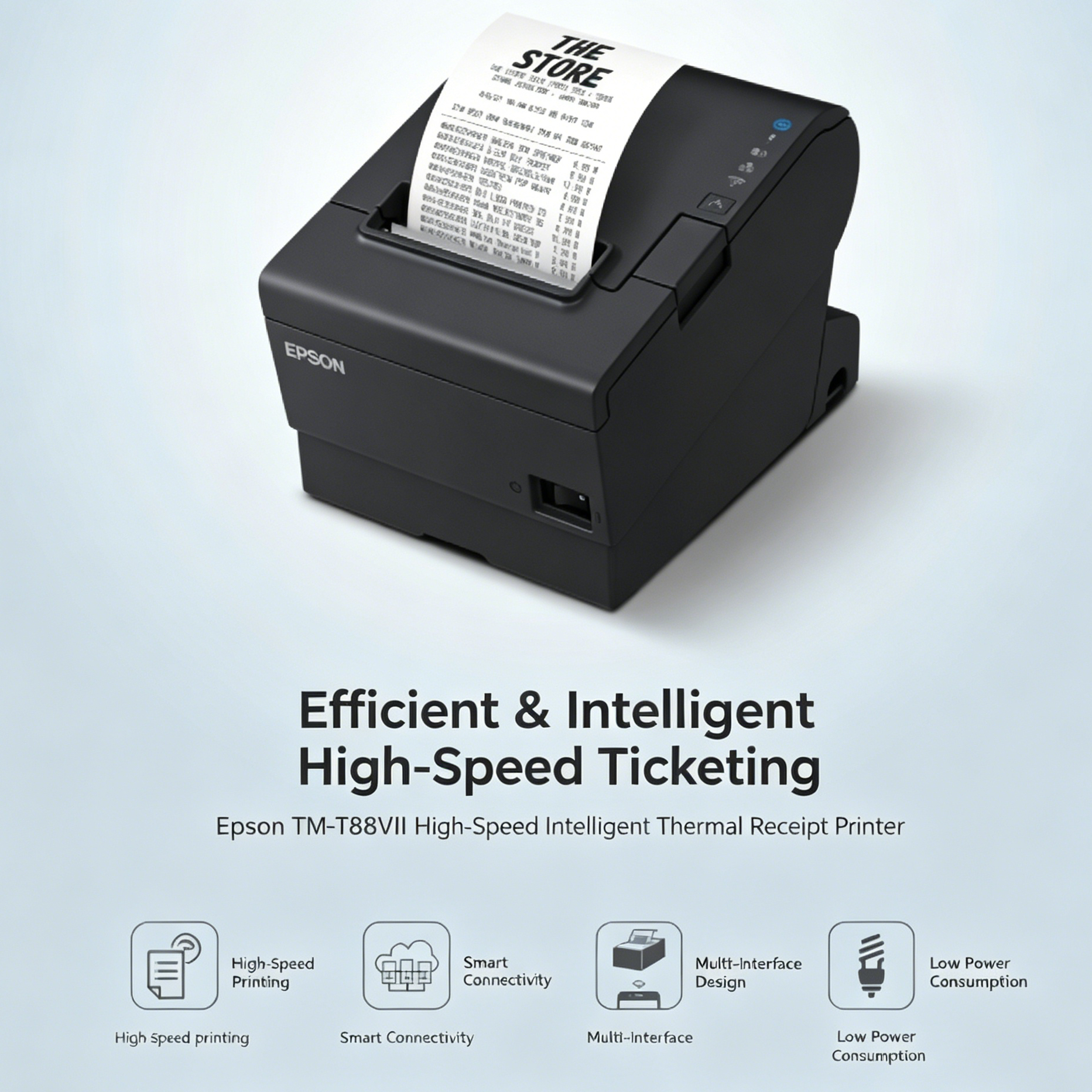

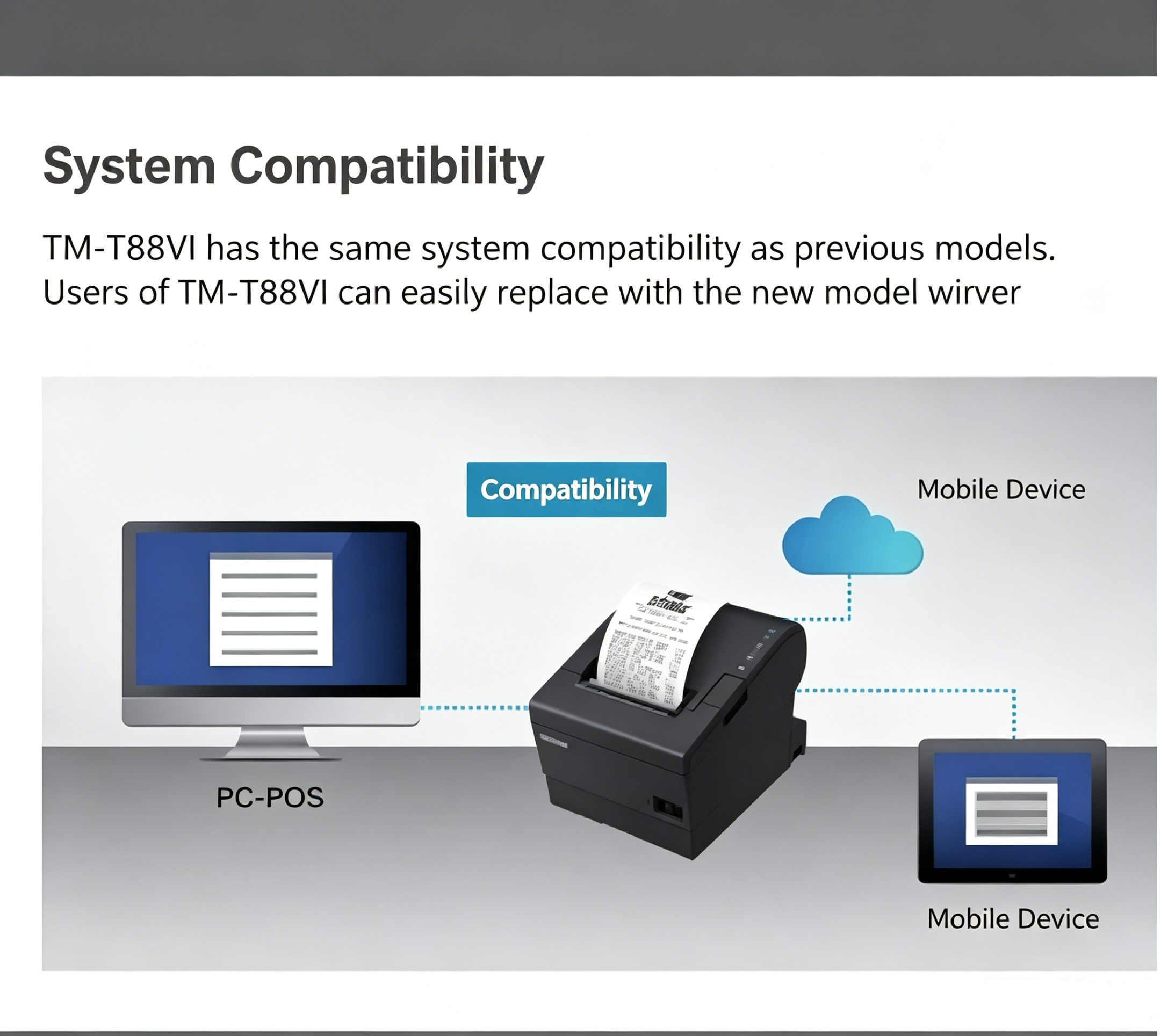

Epson TM-T88VII thermal printer built-in USB/ LAN port, support network printing for PC-POS, mobile phone via WiFi router. Bluetooth connection needs extra external bluetooth adapter.
