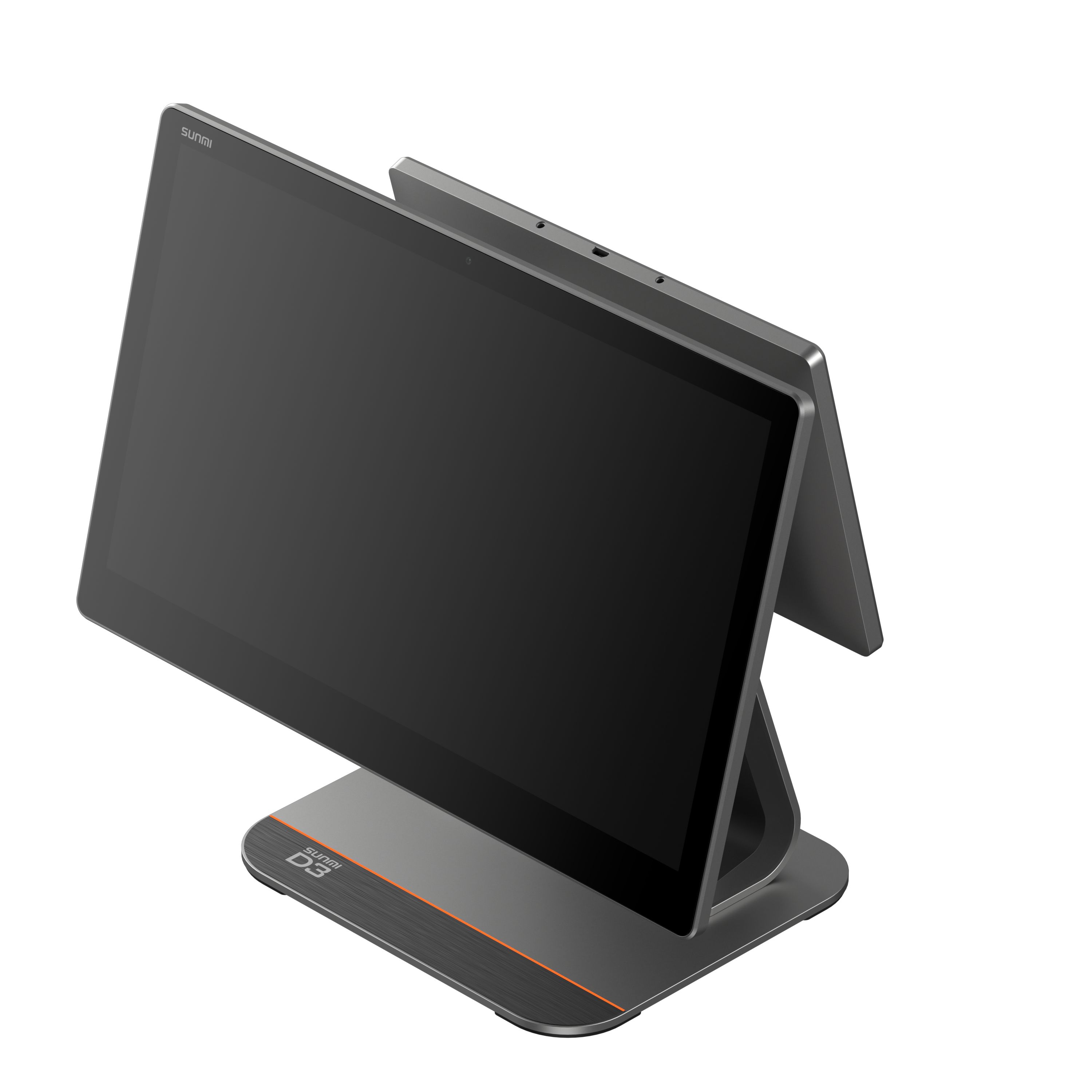

| SUNMI D3 Technical Specifications |
|
| Certified model |
F153A/F153B/F153C |
| Operating System |
SUNMI OS 4.0 (based on Android 14) |
| Processor |
Eight-core, with a maximum clock speed of 2.2GHz |
| Memory |
4GB RAM + 64GB ROM; 3GB RAM + 32GB ROM; Expand the Micro SD card slot, with the maximum support of 1TB. |
| Press the button |
1* Power button (blue indicator light) ；1* Download Function Key (Hidden) |

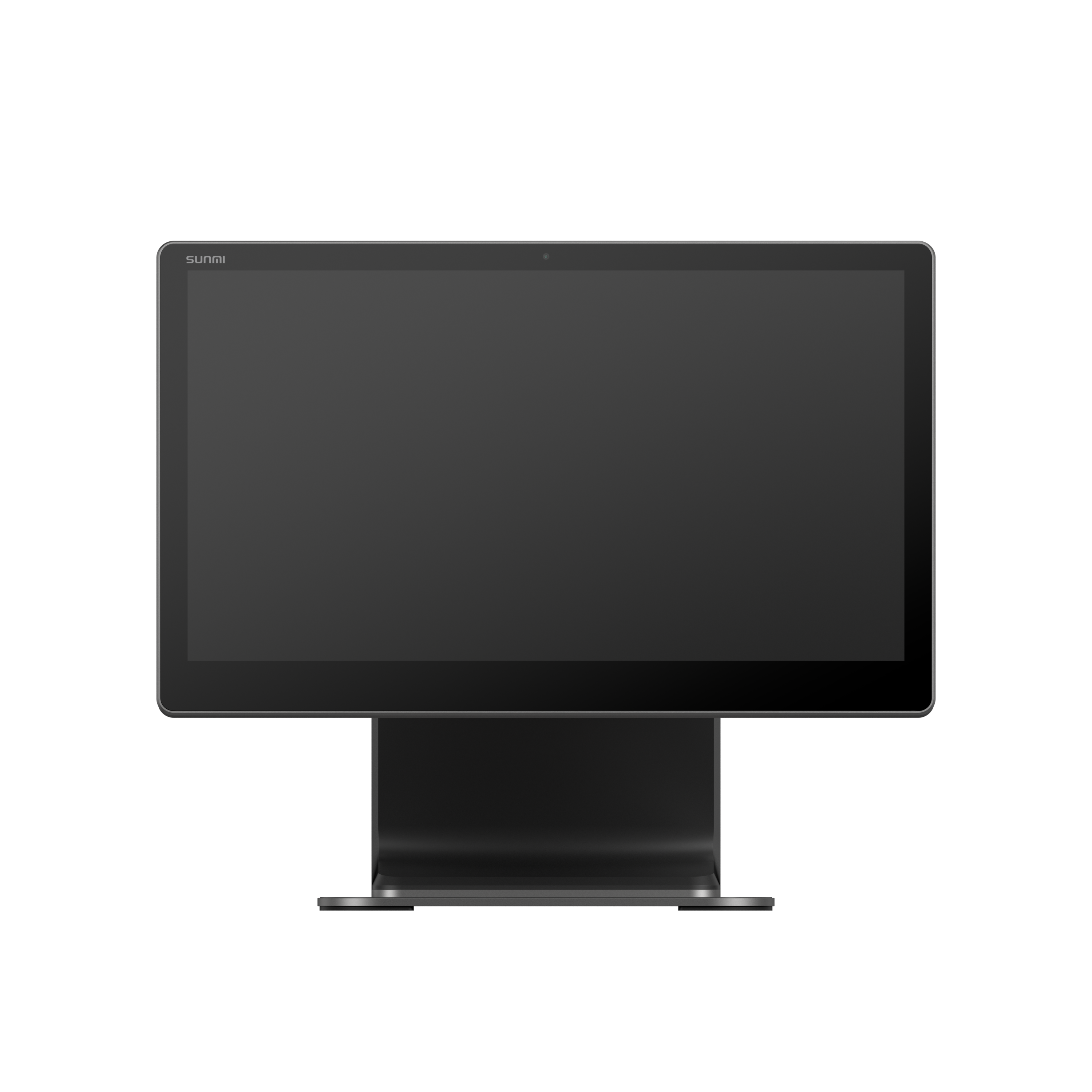

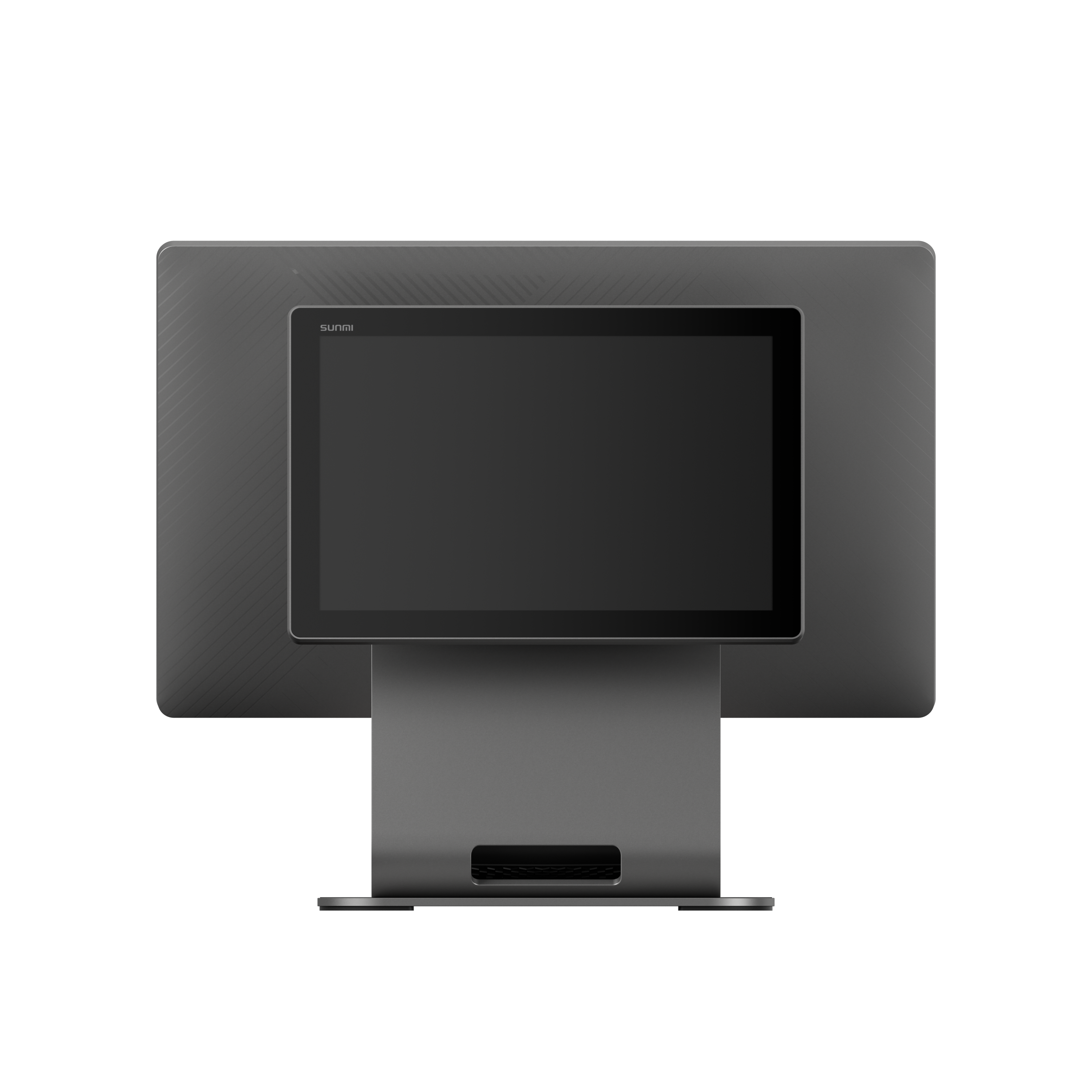

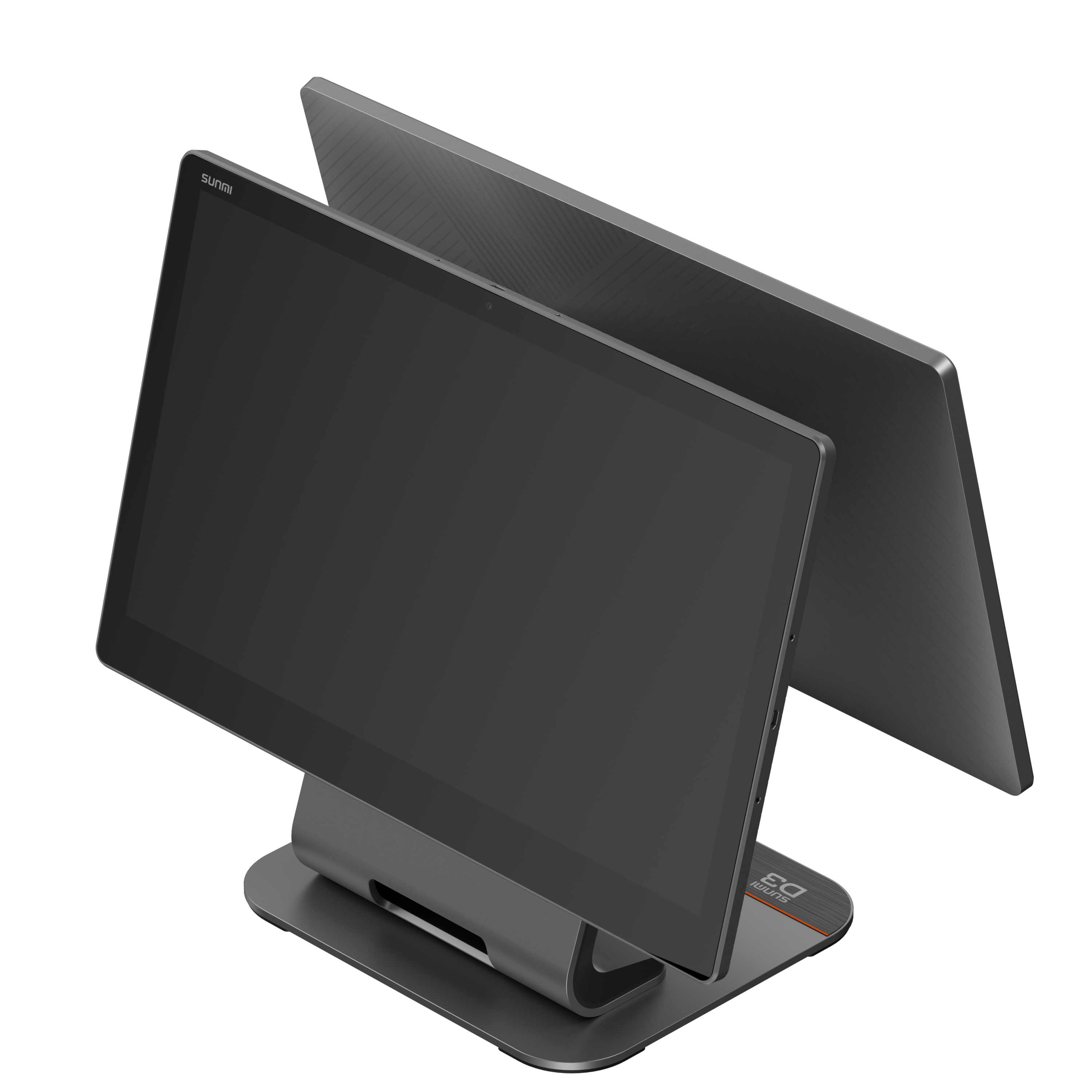

| Touchscreen |
Main screen: 15.6" IPS, Full HD, 1920*1080 pixels, IPS； multi-touch capacitive touchscreen, fingerprint-resistant coating/Secondary Screen: F153B: 10.1" HD, 1280*800 pixels, IPS; F153C: 15.6" FHD, 1920*1080 pixels, IPS; Multi-touch capacitive touchscreen with fingerprint protection coating |

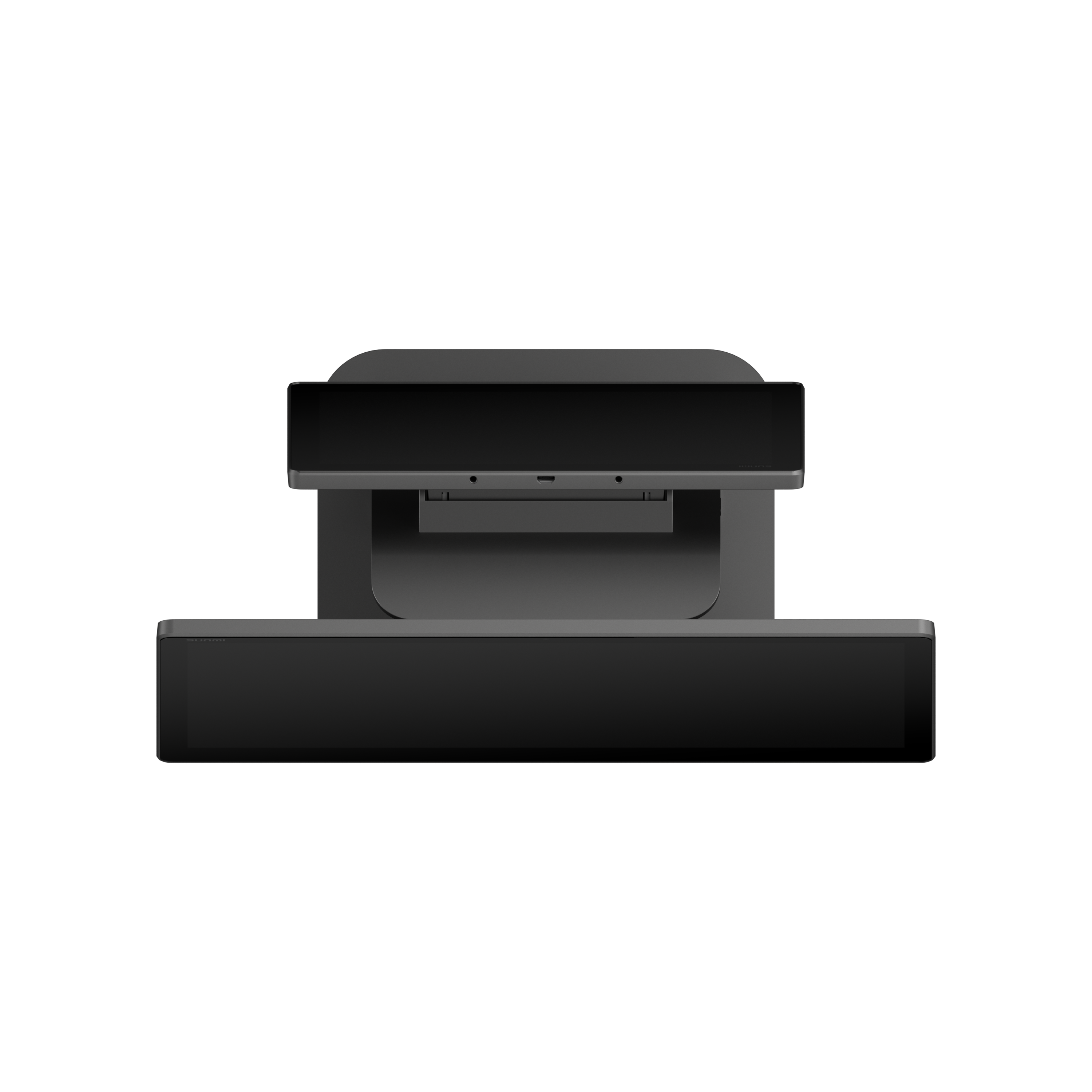

| Interface |
2*USB 2.0 type A ports, 1*USB 3.0 type A port, 1*USB 2.0 type C port, 1*RJ11 serial port, 1*RJ12 coin slot, 1*RJ45 network port, 1*earphone jack, 1*power port
Expansion interface: 2 * USB 2.0 Micro USB (at the top and on the right side of the secondary screen) |
| WI-FI |
Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax ,2.4GHz/5GHz |
| Ethernet |
F153A:100M;
F153B/F153C:1000M |
| NFC |
Card reading on the secondary screen; supports ISO/IEC 14443; Type A/B, Mifare, Felica, compliant with ISO 15693 standard (configurable as needed) |
| Trumpet |
1*3W speaker / 1*microphone (only supported by F153C) |
| Power adapter |
Input: 100~240V AC; Output: 24V / 1.5A DC |
| Size |
375*192*322 mm |
| Net weight |
F153A: 4.6kg /F153B: 5.3kg F153C: 6.0kg |
| Gross weight |
F153A: 6.5kg /F153B: 7.9kg /F153C: 8.7kg |
| Work environment |
Operating temperature: 0°C to 40°C / Storage temperature: -20°C to 60°C / Operating humidity: 5% to 95% without condensation |
| Certification |
CCC、CB、FCC、CE、RoHS |
| Accessories (optional) |
58mm printer guard plate/Desktop MSR card reader/Monocular camera/Dual-camera system |
