| Specifications |
| SECURITY |
| DPI |
Deep Packet Inspection
Support 2421 type Applications |
| IDS/IPS |
Signature-based IPS/IDS threat detection |
| Access Control |
• Source/Destination IP Based ACL
• Stateful ACL
• IPv4/IPv6 ACL
• National Based ACL
• FQDN |
| DNS Proxy |
DNSSEC, DoH, DoT, DNS Override |
| Filtering |
• Web Group Filtering†
• URL Filtering
• Web Security† |
| ARP Inspection |
• Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding
• ARP Detection |
| Attack Defense |
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
| VPN |
| GRE |
√ (Only in Standalone Mode) |
| SSL VPN |
50 Tunnels |
| IPsec VPN |
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
| PPTP VPN |
• PPTP VPN Server
• PPTP VPN Client (10)△
• 50 Tunnels
• PPTP with MPPE Encryption |
| L2TP VPN |
• L2TP VPN Server
• L2TP VPN Client (10)△
• 50 Tunnels
• L2TP over IPSec |
| OpenVPN |
• OpenVPN Server
• OpenVPN Client (5)△
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode |
| WireGuard VPN |
√ |
| SD-WAN |
√ (Only in Controller Mode) |
| PERFORMANCE |
| Concurrent Session |
150,000 |
| New Sessions /Second |
5,100 |
| NAT (Static IP) |
937.2 Mbps / 936.1Mbps |
| NAT(DHCP) |
945.8 Mbps / 940.6Mbps |
| NAT(PPPoE) |
942.9 Mbps / 942.9Mbps |
| NAT (L2TP) |
837.4 Mbps / 881.5Mbps |
| NAT (PPTP) |
803.0 Mbps / 910.5 Mbps |
| 66 Byte Packet Forwarding Rate |
1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate |
81,274 pps / 91,275 pps |
| IPsec VPN Throughput |
• ESP-SHA1-AES256: 646.9Mbps
• ESP-SHA256-AES256: 642.8Mbps
• ESP-SHA384-AES256: 648.9Mbps
• ESP-SHA512-AES256: 658.4 Mbps |
| GRE |
• Unencrypted: 1115 Mbps
• Encrypted: 641 Mbps |
| WireGuard VPN |
393.5Mbps |
| OpenVPN |
129.3Mbps |
| L2TP VPN Throughput |
• Unencrypted: 1034.0 Mbps
• Encrypted: 570.0 Mbps |
| PPTP VPN Throughput |
• Unencrypted: 1165.0 Mbps
• Encrypted: 209.0 Mbps |
| SSL VPN Throughput |
126.7Mbps |
| DPI Throughput |
• TCP: 933 Mbps
• UDP: 927 Mbps |
| IPS Throughput |
• TCP: 939 Mbps
• UDP: 937 Mbps |
| Management Features |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access |
Yes. Require the use of Omada Cloud-Based Controller. |
| Service |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance |
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize†
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support |
| Zero-Touch Provisioning |
Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features |
• Automatic Device Discovery§
• Intelligent Network Monitoring§
• Abnormal Event Warnings§
• Unified Configuration§
• Reboot Schedule
• Captive Portal Configuration§
• ZTP (Zero-Touch Provisioning) |
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, LLDP, 802.11a/b/g/n/ac/ax |

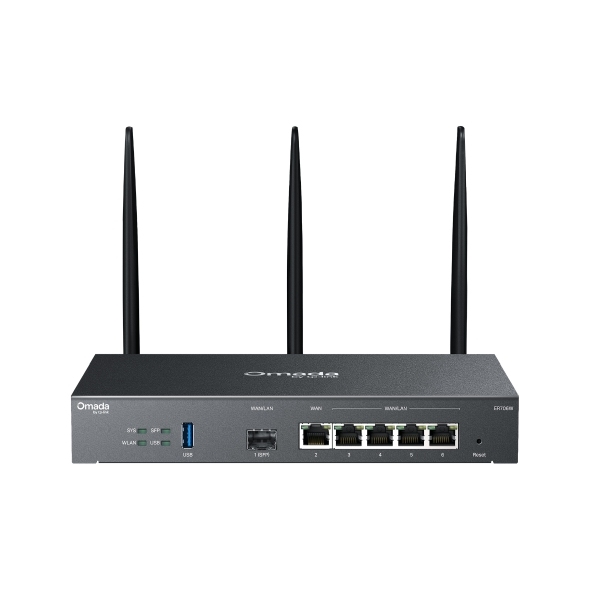

| Interface |
• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB3.0 (supports USB LTE dongle and USB Storage) |
| Button |
Reset Button |

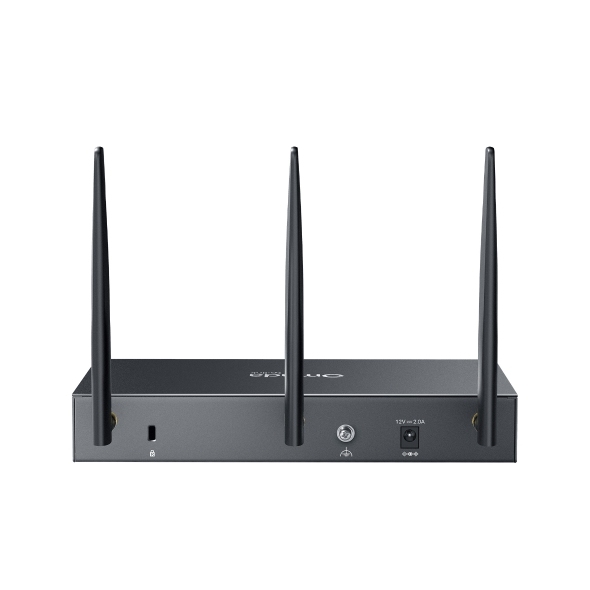

| Power Supply |
12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate |
• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160) |
| Flash |
128 MB NAND |
| DRAM |
512 MB DDR4 |
| LED |
SYS, WLAN, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act),
WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) |
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not
included) |
| Antenna |
• 2.4 GHz: 2x 3 dBi dual-band detachable antennas
• 5 GHz: 3x 4.5 dBi dual-band detachable antennas |
| Surge Protection |
4 KV surge protection |
| Mounting |
Desktop/ Wall-mounting/Rackmount (rackmount kit not provided) |
| Max. Power Consumption |
• EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
• US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
| WIRELESS FEATURES |
| Advanced Features |
• Enable/Disable Wireless Radio & SSID Broadcast
• Automatic Channel Selection Algorithm
• Transmit Power Control (Adjust transmit Power on dBm )
• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Guest Network |
Support |
| BASIC FUNCTIONS |
| LAN DNS |
√ |
| WAN Connection Type |
• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP |
| MAC Clone |
Modify WAN Address |
| DHCP |
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
• WAN DHCP 60 |
| Stateful ACL |
√ |
| Quality of Service |
√ |
| Bridge VLAN |
√ |
| mDNS Repeater |
√ |
| IPv6 |
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN |
802.1Q VLAN |
| IPTV |
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features |
| Advanced Routing |
• Static Routing
• Policy Routing
• RIP†
• OSPF† |
| Bandwidth Control |
IP-Based Bandwidth Control |
| Load Balance |
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection |
| NAT |
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering†
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Disable NAT |
| Session Limit |
IP-Based Session Limit |
| AUTHENTICATION |
| Web Authentication |
• No Authentication
• Simple Password
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP† |
| OTHER |
| Network Services Enabled by Default |
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
_____________________________________________________
TDP Server
Device discovery
• Port: 20003 Protocol: UDP
_____________________________________________________
DHCP Server
Handle DHCP packets
• Port: 67 Protocol: UDP
_____________________________________________________
DNS
Handle DNS packets
• Port: 53 Protocol: TCP/UDP |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Content |
• ER706W
• Power Adapter
• Quick Installation Guide |
| System Requirements |
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux |
| Environment |
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing |
