| Specifications |
| VIDEO AND AUDIO |
| IP Video Input |
16-Channel |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
320 Mbps |
| HDMI Output Resolution |
2 Channels
• HDMI1 Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• HDMI2 Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution |
1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode |
• HDMI1 and HDMI2 Independent / Simultaneous output
• HDMI1 and VGA Independent / Simultaneous output
Note: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output. |
| Multi-View Display |
1,4,6,8,9,16 |
| DECODING |
| Audio Compression |
G.711A/G.711U/G.726 |
| Video Compression |
H.265+/H.265/ H.264+/H.264 |
| Record Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback |
16-Channel† |
| Capability |
• 25fps:
10-ch@3MP、16-ch@1080P
• 30fps:
4-ch@8MP、6-ch@5MP、8-ch@4MP |
| Record Management |
| Record Mode |
• Manual Recording
• Scheduling Recording
• Motion Detection Recording |
| Playback Mode |
• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback |
| Backup Mode |
• Regular Backup
• Video Clip Backup |
| Playback Function |
• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off |
| NETWORK |
| Protocol |
UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP |
| Mobile Phone Access |
Android, iOS |
| Web Browser |
Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability |
ONVIF Profile S/T, CGI |

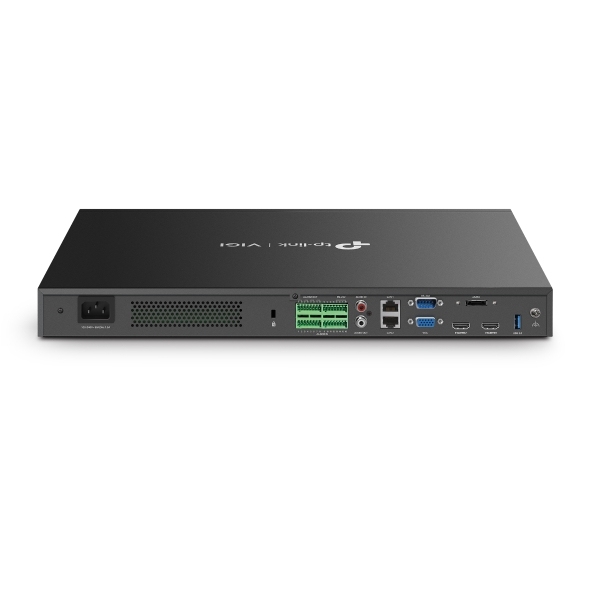

| External Interface |
| Network Interface |
2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface |
2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface |
1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out |
16；4 |
| Serial Interface |
1, RS232 |
| Power |
1× AC Jack |
| Reset Button |
1 |
| Speaker |
N/A |
| eSATA |
1 |
| HDMI |
2 |
| VGA |
1 |
| HARD DISK |
| SATA |
4 SATA Interfaces |
| Capacity |
Up to 16 TB Capacity for Each HDD* |
| Alarm |
| General Alarm |
Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
Note: The alarm function requires the use of a camera. |
| Anomaly Alarm |
• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception |
| Alarm Linkage |
• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
Note: The alarm function requires the use of a camera. |
| GENERAL |
| Storage Temperature |
-40 ℃ to 70 °C (-40 ℉ to 158 ℉) |
| Storage Humidity |
10%~90% RH Non-Condensing |
| Package Content |
• VIGI Network Video Recorder
• Mouse
• Installation Guide
• Power Cord
• HDD Power Cables
• HDD Data Cables
• Terminal Blocks
• Mounting Brackets
• Screws
• Rubber Feet
• HDD Screws |
| Working Temperature |
NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉） |
| Working Humidity |
10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) |
17.32 × 12.99 × 1.73 in (440 × 330 × 44 mm) |
| Net Weight |
4.0 Kg# |
| Gross Weight |
5.0 Kg# |
| Power Supply |
100-240 VAC, 50 to 60Hz, 1.5A |
| Max. Power Consumption |
• 5.5 W (Without Disk)
• 45 W (With Disk) |
| Certifications |
CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
