Print
Printing method: Direct line-type thermal transfer
Printing speed: 230mm/s
Print width: 72mm
Paper roll width: 79.5 ± 0.5 mm
Paper discharging method: Top discharging
Printing paper thickness: 0.06 - 0.08 mm
Printing density: 576 dots per line or 512 dots per line
Character size: ANK character, Font A 1.5x3.0mm; Font B: 1x1x2mm;Simplified/Traditional Chinese: 3.0x3.0mm
Line spacing: 3.75 millimeters (can be adjusted using commands)

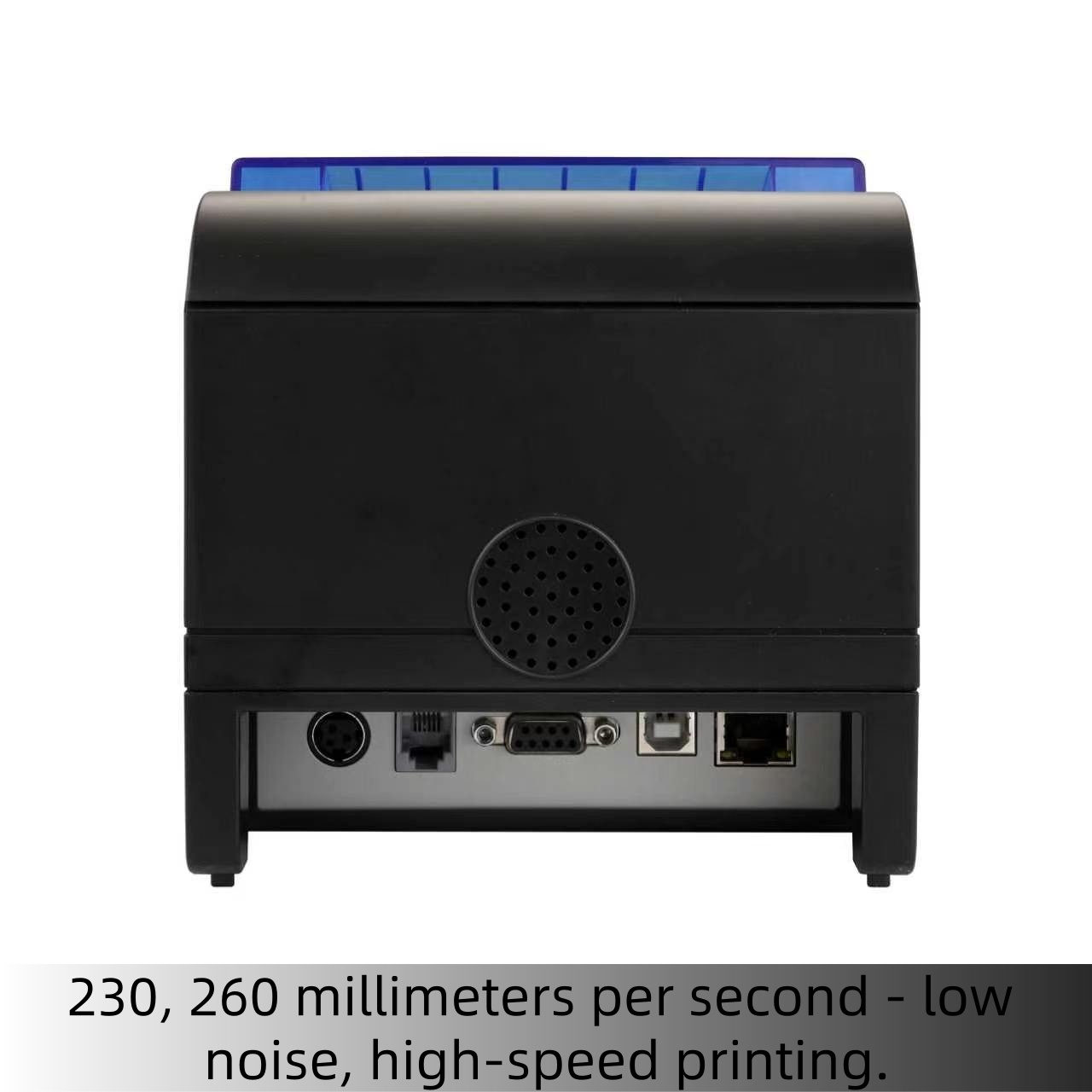

Interface type: USB + network port; 9P serial port + USB + network port (optional Bluetooth/WIFI)
Paper presence detection: Photoelectric sensor
Black label positioning: Supported
Barcode characters
Barcode types: One-dimensional barcodes-UPC-A/UPC-E/JAN13 (EAN13) /JAN8 (EAN8)/CODE39/ITF/CODABAR/CODF93/CODF128; Two-dimensional barcodes- QR Code / PDF417
Extended character set：PC347 (Standard Europe)、Katakana、 PC850 (Multilingual)、 PC860 (Portuguese)、PC863 (Canadian-French)、PC865 (Nordic)、 West Europe、 Greek、 Hebrew、 East Europe、 Iran、 WPC1252、 PC866 (Cyrillic#2)、PC852 (Latin2)、PC858、 Iranll、 Latvian、 Arabic、 PT151 (1251)
Buffering
NV FLASH buffer: 256 K Bytes
Input buffer: 256 K Bytes
Power supply
Adapter Voltage Input: AC 100-240V / 50-60Hz
Voltage output: DC 24V / 2.5A
Coin box control: DC 24V / 1A
Cutting blade
Cutting method: Semi-cut
Life expectancy
Reliability: Printer head lifespan - 100 kilometers; Blade lifespan - 1 million times
Environmental requirements
Working environment: Temperature 0 - 45℃; Humidity 10 - 80% (no frosting)
Storage environment: Temperature -10% to 60% ; Humidity: 10% to 90%
Environmental Directive
Operating environment: Windows / Linux
Print command: Compatible with ESC/POS commands
Physical properties
Weight: Approximately 1.1 kilograms (excluding paper rolls)
Overall dimensions: 188mm × 140mm × 137.7mm (depth × width × height)
Wireless & Bluetooth printing is available, but Bluetooth/WiFi module is NOT included, extra purchase required
